Description

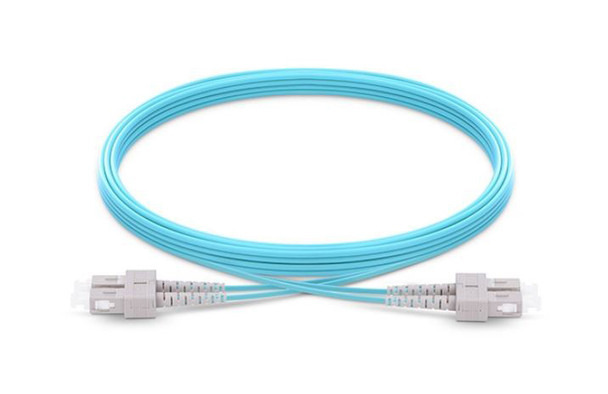

SC UPC to SC UPC Duplex OM4 Armored PVC (OFNR) Patch Cable
Custom Lengths and Options Available! Contact Us for a quote now
OM4 50/125 Multimode SC/UPC to SC/UPC Duplex Armored Fiber Optic Cable
Armored fiber optic cable with build-in metal armor can provide stronger protection of the optical fibers than standards fiber optic cables. The rugged armored cables allow optical fiber to be installed in the most hazardous areas, including environments with excessive dust, oil, gas, moisture, or even damage-causing rodents.
| Connector A | SC UPC | Connector B | SC UPC |
| Fiber Mode | 50/125μm | Fiber Type | Duplex |
| Cable Diameter | 3.0mm | Cable Jacket | Single Armored |
| Cable Color | Aqua | Cable Material | Stainless steel tube, PVC |
| Minimum Bend Radius (Dynamic) | ≥20D (mm) | Minimum Bend Radius (Static) | ≥10D (mm) |
| Fiber Grade | Bend Insensitive | Tensile Loads | 100~132lbs |
| Insertion Loss | ≤0.3dB | Return Loss | ≥20dB |
| Operating Temperature | -40~75°C | Storage Temperature | -45~85°C |
Availability: Ships in 2-3 days
