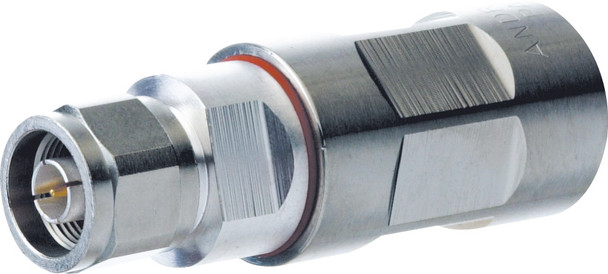

L4.5PNM-RC Type N Male RingFlare™ for 5/8 in LDF4.5-50 cable

(No reviews yet) Write a Review
SKU:
L4.5PNM-RC
MPN:
L4.5PNM-RC
$38.00

Description

L4.5PNM-RC Type N Male RingFlare™ for 5/8 in LDF4.5-50 cable

Product Classification
Brand   HELIAX®
Product Type   Wireless and radiating connector

General Specifications
Interface   N Male
Body Style   Straight
Mounting Angle   Straight

Electrical Specifications
Connector Impedance   50 ohm
Operating Frequency Band   0 – 6100 MHz
Cable Impedance   50 ohm
RF Operating Voltage, maximum (vrms)   707.00 V
dc Test Voltage   2000 V
Outer Contact Resistance, maximum   0.30 mOhm
Inner Contact Resistance, maximum   2.00 mOhm
Insulation Resistance, minimum   5000 MOhm
Average Power   0.6 kW @ 900 MHz
Peak Power, maximum   40.00 kW
Insertion Loss, typical  0.05 dB
Shielding Effectiveness   -110 dB

Mechanical Specifications
Outer Contact Attachment Method   Self-flare
Inner Contact Attachment Method   Captivated
Outer Contact Plating   Trimetal
Inner Contact Plating   Gold
Attachment Durability   25 cycles
Interface Durability   500 cycles
Interface Durability Method   IEC 61169-16:9.5
Connector Retention Tensile Force   890 N   |   200 lbf
Connector Retention Torque   5.42 N-m   |   48.00 in lb
Insertion Force   66.72 N   |   15.00 lbf
Insertion Force Method   MIL-C-39012C-3.12, 4.6.9
Pressurizable   No
Coupling Nut Proof Torque   4.52 N-m   |   40.00 in lb
Coupling Nut Retention Force   444.82 N   |   100.00 lbf
Coupling Nut Retention Force Method  MIL-C-39012C-3.25, 4.6.22

Dimensions
Nominal Size   5/8 in
Diameter   35.56 mm   |   1.40 in
Length   81.28 mm   |   3.20 in
Weight   181.44 g   |   0.40 lb

Environmental Specifications
Operating Temperature   -55 °C to +85 °C (-67 °F to +185 °F)
Storage Temperature   -55 °C to +85 °C (-67 °F to +185 °F)
Immersion Depth  1 m
Immersion Test Mating   Mated
Immersion Test Method   IEC 60529:2001, IP68
Water Jetting Test Mating   Mated
Water Jetting Test Method   IEC 60529:2001, IP66
Moisture Resistance Test Method   MIL-STD-202F, Method 106F
Mechanical Shock Test Method   MIL-STD-202F, Method 213B, Test Condition C
Thermal Shock Test Method   MIL-STD-202F, Method 107G, Test Condition A-1, Low Temperature -55 °C
Vibration Test Method   IEC 60068-2-6
Corrosion Test Method   MIL-STD-1344A, Method 1001.1, Test Condition A

Standard Conditions
Attenuation, Ambient Temperature   20 °C   |   68 °F
Average Power, Ambient Temperature   40 °C   |   104 °F
