Description

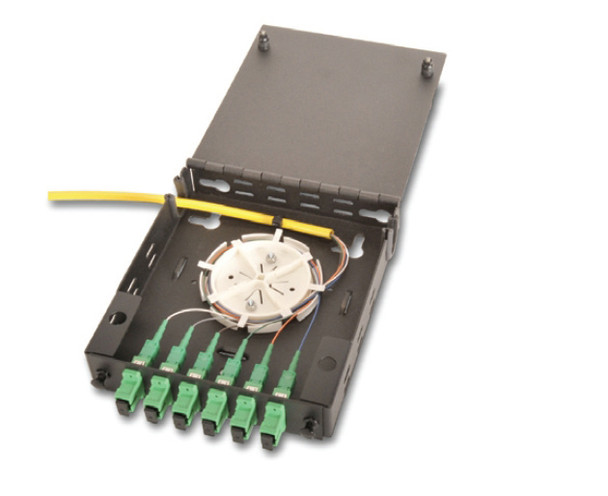

FPW016SMSCA1SP3M Wall Mount Fiber Distribution Panel Loaded with 6 SM SCA Fiber and Pigtail
Small single Wall Mount Fiber Enclosure FPW01X LOADED WITH 6 SM SCA Fiber w/ wheel spool and 3M pigtail 6 strand (hex head mounting screws included)
Detailed Configuration
- 1 Slot Wall Mount compact enclosure
- 6 Fiber capacity
- SC/APC adapters
- OS1/OS2 Singlemode
- Fibers manufactured with Corning Glass
- Pigtail Length is 3 Meter
- Includes wheel management. Splice chip available upon request.
NOTE: We do offer many other various configurations, up to 24 total fiber capacity. Contact us direct for a quote, if you have other configuration needs.
- Dimensions: 6.3” (H) x 5.5” (W) x 1.57” (D)
- Material: Powder Coated 18 Gauge Steel
- Capacity: 1 Adapter Panel
- Colors: Black
Product Info
TXM’s small wall mount enclosures are used for indoor interconnectivity and termination of optical fibers with the capacity of one adapter panel, and come installed with a fiber spool wheel, or splice tray if preferred. Our compact design allows for installation in small tight areas
Warranty Information
All materials are warrantied against defect. If you are unsatisfied with our product, please contact us with your concerns and we will submit authorization for a return with refund.
